Nr. of constructed blocks
|
1
|
|
Nr. of heights over slopes
|
4 plus solarium
|
|
Nr. of heights under slopes
|
1
|
|
M2 of the plot
|
6.274,21m2
|
|
M2 constructed in residence indoor
|
3.749,97m2
|
|
M2 constructed in residence outdoor (terraces and patios)
|
3.130,66m2
|
|

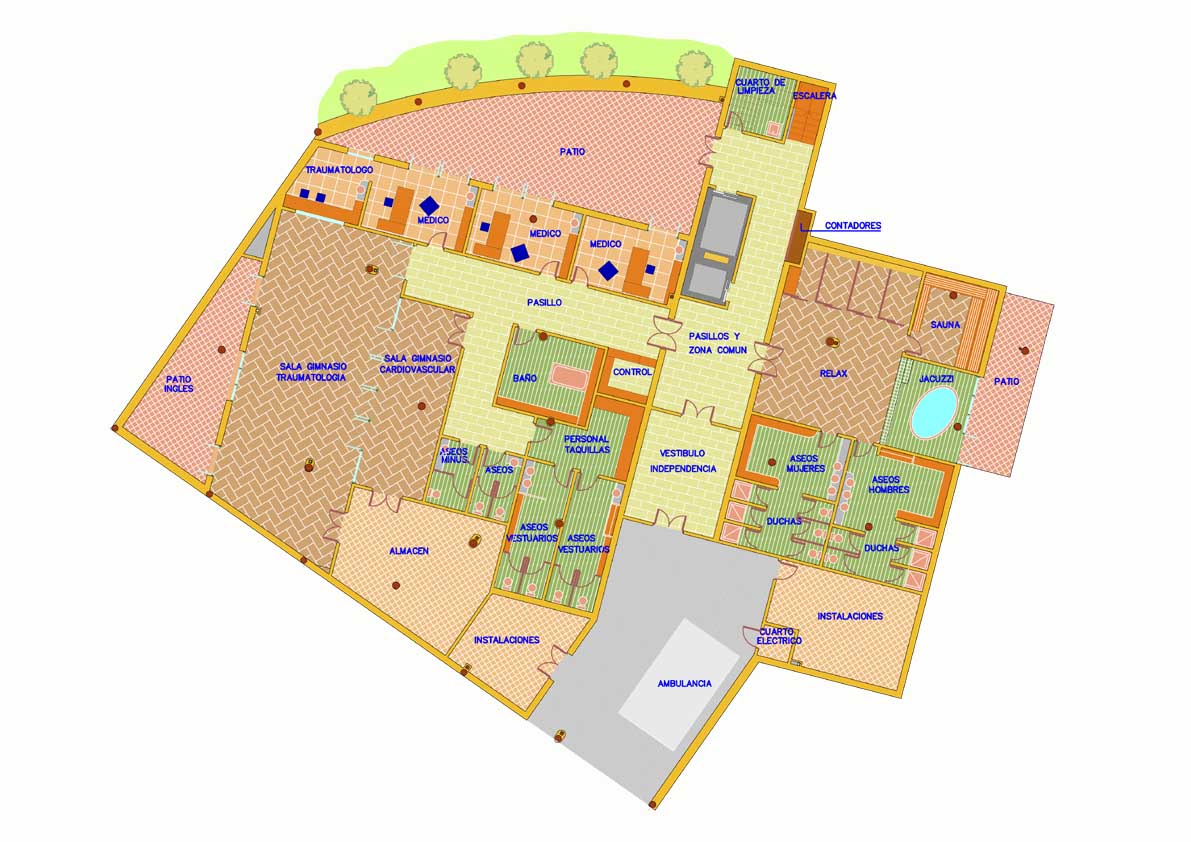

M2 in semi-basement (Consultation Zone, rehabilitation and Spa)
|
1.023,91m2
|
|
M2 constructed on garages
|
2.174,47m2
|
Foundation and structure, reinforced concrete.
CONSTRUCTION WORK.- Closing with ´Capuchina´ brickwork with insulation of projected polyurethane, and panelling of a thin board with laminated plaster (plasterboard) on the interior side. The separation between the rooms is made of a partition system (plasterboard) of laminated plaster sheet. The inclined roofs of the Residential Age Care Facility will be formed by pitches with honeycomb walls and double-walled brick panels. The flat roofs will be inverted, visible, made waterproof by thermal insulation of extruded polythene, geo-textile sheets and finish with stoneware tiles, clay imitation.
COATINGS.- Exteriors plastered and colour-painting. Interiors finish with laminated plaster sheet (plasterboard) and finish with smooth acrylic paint. False ceilings of plasterboard for exterior use on terraces of rooms, living-rooms and other spaces. Exterior pergolas and banisters of wood, prepared for terraces in the open. The bathrooms of the rooms and the commonly used ones will be covered by the material vinyl. Finish of the changing rooms and toilets in common zones will be of stoneware. The rest of the faces will be in smooth acrylic paint. Threshold of stoneware in exits to the terraces.
FLOOR COVERING.- The floor covering of the common zones will be of first-quality stoneware and first-quality ivory-cream marble with skirting board of 7 cm in hall, corridors. The floor covering of the interior of the rooms will be of wood. The floor of the terraces and exterior staircases will be of stoneware tiles, clay imitation.
WOODWORK.- Exterior woodwork with aluminium and Climalit glass. Interior woodwork, both doors and wardrobes will be made of wood, colour beech tree.
PLUMBING.- Water supply system with polythene pipes, heat-resistant with thermal insulation in hot water system. Supply stopcocks in all the humid rooms. Sanitary ware in white colour from the house of Roca. Mixer taps from the house of Roca. Water inlet in all the terraces.
ELECTRICITY.- Electric distribution mains by windpipe with lines of induction and steel lighting according to the Electrical Regulations of Low tension. General control panel and protection with differential switch and thermal magneto ignition. White mechanism Simon Btifino in built-in installation. Built-in halogen wall lamps in bathrooms and toilets.
Totally equipped industrial kitchen. Kitchen units in all the rooms.
COMMUNICATIONS.- Installations of telecommunication according to the Regulations of Infrastructure of Telecommunication. The installation is fitted with capture units via terrestrial and satellite, allowing at any moment the access to any kind of future phone or TV operator. TV and phone sockets in the rooms, living-rooms, etc.
AIR-CONDITIONING AND HEATING.- Collective air-conditioning and heating system in the rooms, living-rooms, etc.
COMMON ZONES.- Main access with reception booth. Staircase centre of cream marble as steps of stair.
Smooth acrylic paint on walls. Elevator and stretcher lift. Tropical gardening with illumination, pergolas. Pedestrian paths of stamped concrete. Pool for adults with illumination.

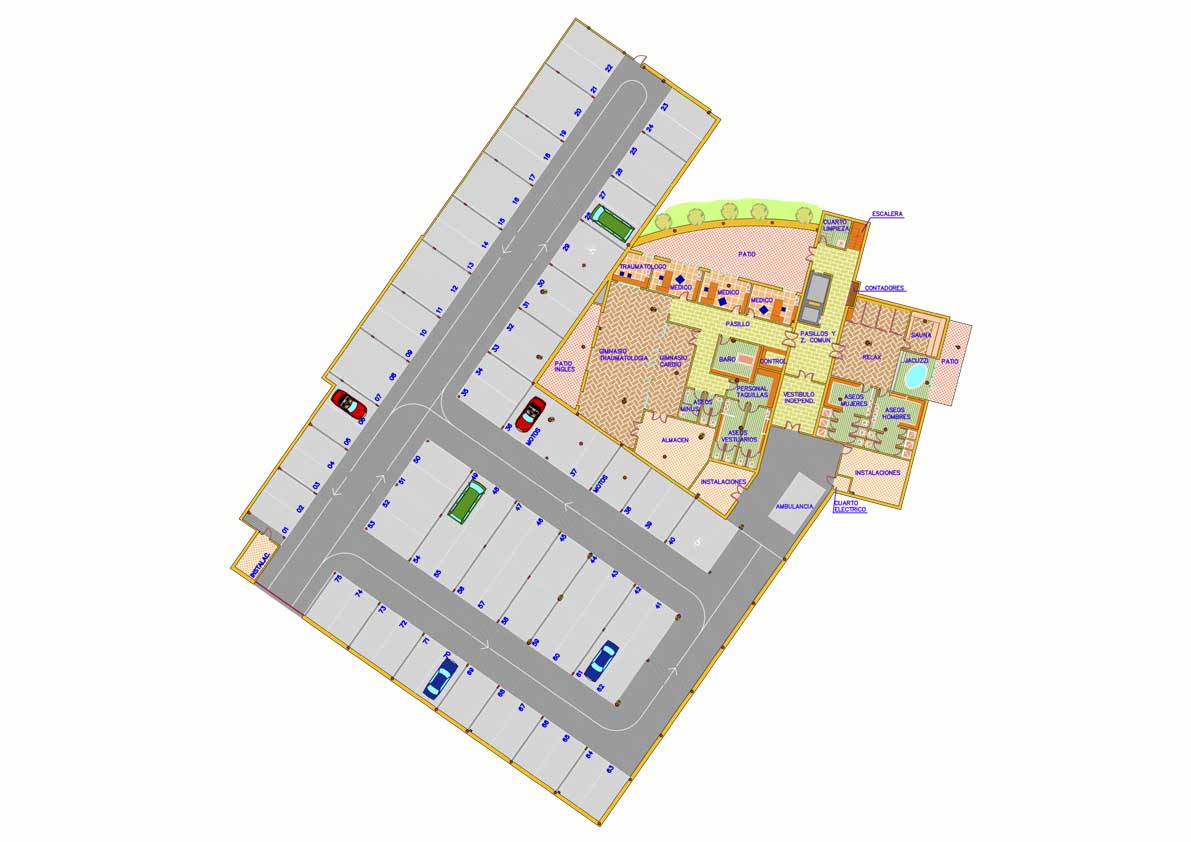

GARAGES.- Parking spaces in the basement. The parking in the basement is fitted with a fire detection and extinction system by an automatic central, detectors of carbon monoxide, thermal detectors and alarms. It also disposes of extraction pipes of galvanized metal, activated by the central itself. Observing regulation CPI-96.
